New model seperators are used in flour, semoline and maize mill factories. They are used for seperate and remove of light impurities or foreing particles from wheat, maize and other cereales.
| Model Modele |
Air Volume ( m3/min) Debit D’Air ( m3/min) |
Sieve Dimensions (cm) Dimensions de Tamis (cm) |
Separator Cyclone Cyclone de Decantation |
Capacity (t/h) Capacité (t/h) |
Weight kg Poids kg |
||||||||||||||
| Pre-Cleaning PreNettoyage |
Cleaning Nettoyage |
Width Largeur |
Length Longueur |
Diameter Ø mm Diametre Ø mm |
Pre-Cleaning PreNettoyage |
Cleaning Nettoyage |
Net | Gross Brut |
|||||||||||
| V-SP 60x150 | 40 | 30 | 60 | 150 | 250 | 3 | 520 | 700 | |||||||||||
| V-SP 100x150 | 60 | 40 | 100 | 150 | 300 | 15 | 8 | 540 | 740 | ||||||||||
| V-SP 100x200 | 80 | 50 | 100 | 200 | 350 | 25 | 13 | 550 | 800 | ||||||||||
| V-SP 150x200 | 100 | 70 | 150 | 200 | 400 | 65 | 20 | 750 | 875 | ||||||||||

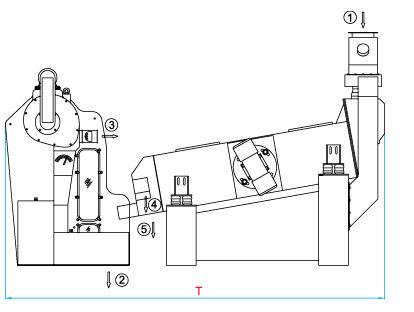

| Model / Modele | ØA | B | C | D | E | F | G | H | K | P | R | S | T | ||||||
| V-SP 60x150 | 120 | 2300 | 1420 | 1690 | 600 | 1500 | 965 | 1195 | 1245 | 525 | 445 | 1025 | 2890 | ||||||
| V-SP 100x150 | 120 | 2470 | 1460 | 1760 | 1000 | 1500 | 1455 | 1590 | 1240 | 525 | 445 | 1455 | 3270 | ||||||
| V-SP 100x200 | 140 | 2980 | 1460 | 1760 | 1000 | 2000 | 1455 | 1590 | 1740 | 525 | 445 | 1455 | 3770 | ||||||
| V-SP 150x200 | 220 | 3150 | 1910 | 2360 | 1500 | 2000 | 1910 | 2010 | 1540 | 600 | 525 | 1980 | 3850 | ||||||
