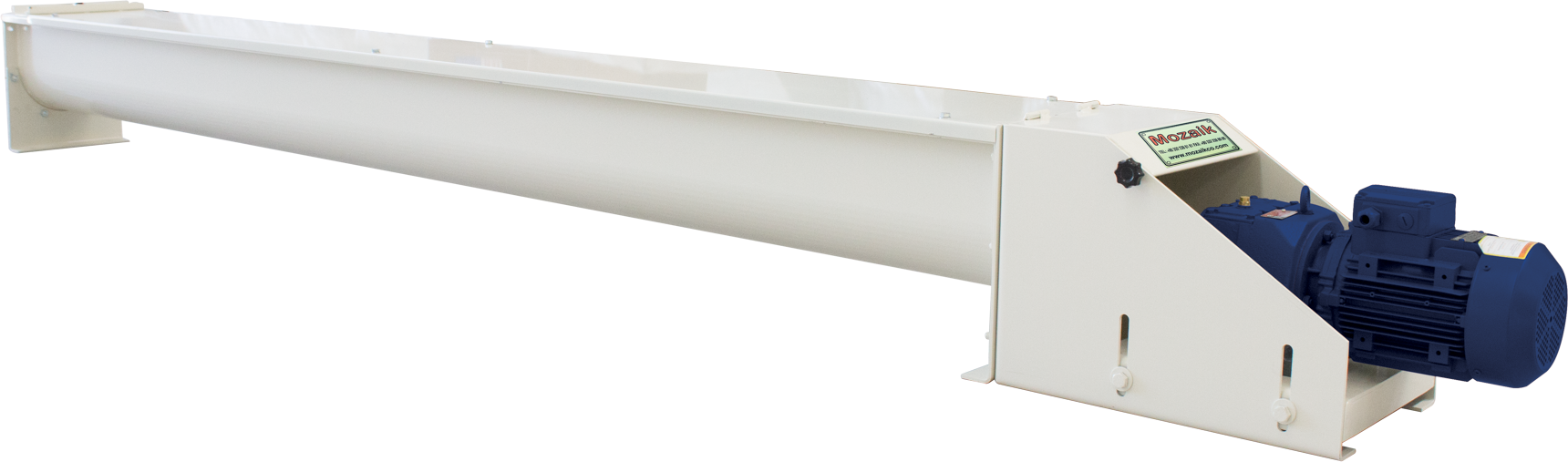

SCREW CONVEYOR

Used for handling cereals, flour and wheat bran as a feeding, collecting, mixing and wetting auger. Made of painted sheet metal food or stainless steel.

Model
Modele
Dimensions ( mm ) Product Output (axb) Sortie Produit Capacity / Capacité t/h 100 rpm - tr/min
A B C ØD E F Wheat / Bles Flour / Farine Bran / Son De Bles
VH-150 150 150 290 42 180 260 185x185 5 3.8 2.5
VH-180 180 180 330 42 220 300 215x215 8.5 6.5 4
VH-200 200 200 360 48 230 310 230x230 12 9 6
VH-250 250 250 380 60 280 360 280x280 24 17 12
VH-300 300 300 460 76 330 410 330x330 40 28 20
VH-350 350 350 545 76 380 460 380x380 65 45 32
VH-400 400 400 580 76 430 510 430x430 95 65 40
